Floorplan - 2017 Keystone RV Montana High Country 310RE
-
-
-
-

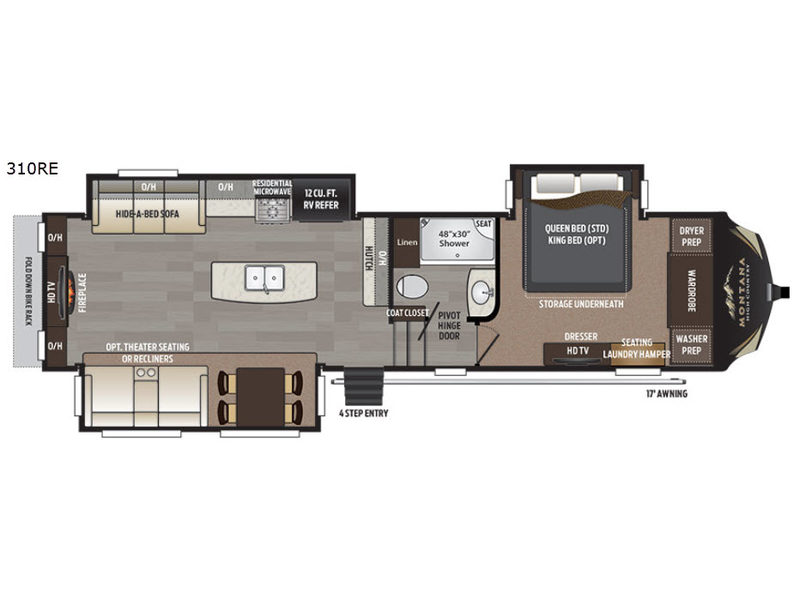

310RE Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 34 ft 11 in | Ext Width | 8 ft |
| Ext Height | 12 ft 9 in | Hitch Weight | 2155 lbs |
| Dry Weight | 10450 lbs | Cargo Capacity | 3705 lbs |
| Fresh Water Capacity | 64 gals | Grey Water Capacity | 88 gals |
| Black Water Capacity | 49 gals | Tire Size | ST235/80R16E |
| Furnace BTU | 39770 btu | Available Beds | Queen |
| Refrigerator Type | 4 door | Refrigerator Size | 12 cu ft |
| Cooktop Burners | 3 | Shower Size | 48" x 30" |
| Number of Awnings | 1 | Water Heater Capacity | 18 gal |
| Water Heater Type | Gas/Electric | TV Info | LR HD LED, BR 32" HD LED |
| Awning Info | electric | Washer/Dryer Available | Yes |
| Shower Type | Shower w/Seat | VIN | 4YDF31026HA742060 |
Description
Step inside and be pleasantly surprised by the amount of interior space you see with dual opposing slides. There is a free standing dinette with four chairs and two recliners or optional theater seating in a slide out to your immediate left.
Along the rear wall enjoy an entertainment center with HDTV and fireplace below, plus storage on either side.
The slide out opposite the door side features a hide-a-bed sofa, counter space, a three burner range with overhead residential microwave oven, and a RV refrigerator. There is also a convenient hutch along the interior wall, and a kitchen island that offers more food prep space and a double sink making clean up a cinch.
Head up the steps to the right of the door and find a side aisle bath on the left along with a handy closet just before the bathroom door. The bathroom features a spacious linen cabinet, toilet, a 48" x 30" shower, and a vanity with sink.
The master bedroom at the front of this Montana High Country unit offers a slide out queen or optional king bed both with underneath storage for larger items like luggage or extra blankets. There is more storage found opposite the bed in the dresser, plus there is a 32" HDTV above, and seating along side of it. The front wall features a wardrobe between washer and dryer prepped spaces, plus so much more!
Features
Standard Features (2017)
Moving to Montana Package
- Cognac walnut cabinetry
- Solid hardwood slideout fascia
- Flush mounted LED interior lights
- Ceiling fan
- Tri-fold hide-a-bed sofa
- Stainless steel sink
- Solid surface flush mount sink covers
- 30” Over-The-Range Microwave
- High output range with automatic igniter
- Residential French door refrigerator with ice maker and 1000 watt inverter (345, 353, 375, 379, 381)
- Power vent fan with rain sensor in kitchen
- Pull out kitchen trash can (Select models)
- Winegard Rayzar Z-1 HD digital TV antenna
- 32” HD LED TV in bedroom
- Bluetooth Soundbar with FM Tuner
- Bedside night stands
- Two bedside windows in slide out
- Massive storage under bed
- Magnetic bedroom door holder
- 50amp Service
- Motion sensor LED light in bedroom closet
- Sky light over shower
- 18 gallon Per Hour DSI gas/electric water heater
- Brushed nickel cabinet hardware
- 6’ 6” Tall main slide-outs
- Roller Shades
- Ceiling crown molding
- Solid surface kitchen countertop
- Kitchen faucet with integrated pull down sprayer
- Sink cover storage below kitchen sink
- Flush mount glass range cover
- 22” Oven with Broiler
- 12 Cubic foot 4 door RV refrigerator (305, 310, 340, 344, 352, 358, 362, 370, 374, 378, 380)
- Full extension drawer guides
- Motion sensor LED light in pantry (Select models)
- "Sky-View" lighted skylight w/shade
- RG-6 satellite prep
- 40” or 50” HD LED TV in living area
- DVD Player
- 60” x 80” Queen Bed
- Bedside USB charging station
- Designer headboard
- Reading lights over bed
- Prepped for combo OR 2 piece washer/dryer with separate 20amp circuits for each appliance
- Wire & frame for 2nd ducted A/C
- 65amp Converter
- Seamless 48” x 30” fiberglass shower
- Porcelain foot flush toilet
High Country Package
- Laminated sidewalls with metal backing strips to anchor interior cabinets
- Powder coated 12” steel I-beam frame (340, 358, 362, 370, 374, 375, 378, 379, 380, 381)
- (R-38 Equivalent) Radiant technology insulated roof
- (R-15) Insulated slideout floors
- Vented attic
- Enclosed and heated low point drains
- 35,000 BTU furnace
- Max Turn front cap and radius frame with Hitch Vision™
- MORryde CRE 3000 suspension
- 6000 lb Dexter E-Z lube axles with self adjusting brakes (305, 310, 344, 345, 352, 353)
- Back-up lights
- Automotive paint with 2 layers of clear coat on front cap
- Automotive frameless safety glass windows
- Fold away entry handle
- Enormous drop frame pass thru storage compartment
- Four step entry steps
- Motion sensor LED lights in pass thru storage compartment
- Heated central exterior water and convenience center
- Welded aluminum framed walls and floors
- Seamless Plyveneer® floor decking
- Powder coated 10” steel i-beam frame (305, 310, 344, 345, 352, 353)
- Tested and approved for 0 degree usage
- (R-21) Insulated main floor
- (R-11) Insulated sidewalls
- Insulated and heated holding tanks and dump valves
- 12v electric fresh water tank heater
- 4770 BTU electric fireplace
- Prepped for rear view camera
- 16” 8-Lug Aluminum wheels
- 7000 lb Dexter E-Z lube axles with self adjusting brakes (340, 358, 362, 370, 374, 375, 378, 379, 380, 381)
- Under mount spare tire and carrier
- High gloss gel coated sidewalls and rear wall
- Extra large (30” wide by 78” tall) entry door with friction hinge
- Rear roof ladder
- Slam latch pass thru storage compartment doors
- Ground effect lighting
- 12v electric patio awning with LED lights
Options
- King Bed (N/A 362RD)
- Residential French door refrigerator with ice maker and 1000 Watt inverter (345, 353, 375, 379, 381)
- 4770 BTU electric fireplace (Mandatory 310, 362, 374, 375, 378, 379)
- Power vent fan with rain sensor in bathroom
- Power vent fan with rain sensor in rear bathroom (358 or 362)
- Theater seating in place of living area hide-a-bed (358 or 362)
- Theater seating in place of recliners (305, 310, 340, 344, 345, 352, 353, 370)
- Free standing dinette with 4 chairs IPO Booth Dinette
- Tailgate bike rack (Mandatory)
- 4 Point electric automatic leveling system (305, 310, 344, 345, 352, 353)
- 6 Point electric automatic leveling system(340, 358, 362, 370, 374, 375, 378, 379, 380, 381)
- Dual pane frameless windows
- Low profile ducted 2nd 13,500 BTU A/C
- Slideout awnings package
- Generator ready (Onan 5.5 KW specifications)
- Onan Marquis Gold 5.5 KW LP generator
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
