New 2023 Jayco Eagle HT 30.5CKTS

Fifth Wheel

Stock #RV18538

Nepean, ON

1 of 2

Sale Price: $79,900
MSRP: $109,417
SAVINGS: $29,517

Sleeps 4
3 Slides
Rear Living Area

Kitchen Island

34ft Long
9,355 lbs
MODERN FARMHOUSE

See All Specs

Specifications

Sleeps	4	Slides	3
Length	33 ft 10 in	Ext Width	8 ft 1 in
Ext Height	12 ft 4 in	Int Height	6 ft 2 in
Interior Color	MODERN FARMHOUSE	Hitch Weight	1675 lbs
GVWR	11500 lbs	Dry Weight	9355 lbs
Cargo Capacity	2145 lbs	Fresh Water Capacity	81 gals
Grey Water Capacity	82 gals	Black Water Capacity	45 gals
Tire Size	15"	Furnace BTU	35000 btu
Available Beds	Queen	Refrigerator Type	12V
Refrigerator Size	10 cu ft	Cooktop Burners	3
Shower Size	34" x 34"	Number of Awnings	1
LP Tank Capacity	30 lbs	Water Heater Type	Tankless
AC BTU	15000 btu	TV Info	LR LED Smart HDTV
Awning Info	15' Electric w/LED Lights	Axle Count	2
Number of LP Tanks	2	Shower Type	Radius
Electrical Service	50 amp	VIN	1UJCA0BR2P1PB0152

Description

Jayco Eagle HT fifth wheel 30.5CKTS highlights:

Rear Living Area
Front Private Bedroom
Kitchen Island
USB Charging Ports
Outside Shower

Once you step inside this fifth wheel, you won't want to camp any other way! It features a front private bedroom with a queen bed, a wardrobe slide with a dresser and linen closet, and an entrance into the dual entry bathroom which has a radius shower for you to freshen up in each morning. The rear living area has a tri-fold sofa for an extra sleeping space and theater seating across from the entertainment center with a fireplace for a cozy evening. You can prepare your best meals with the kitchen island and three burner stainless steel range then enjoy them at the free standing table and chairs. There is plenty of storage space throughout between the overhead cabinets, the coat closet/pantry, the two additional kitchen pantries, and the hutch for your dishes!

The Jayco Eagle HT fifth wheels and travel trailers include many features to make camping easier than ever! They are lightweight, making them easy to tow, and the JAYCOMMAND "Smart RV" system lets you control your RV's functions from a tablet or smartphone! Each model is constructed with Stronghold VBL lamination, the lightest, yet strongest in the industry, along with a durable Magnum Truss roof system that can withstand 4,500 lbs. The 4 Star Handling Package includes Goodyear Endurance tires, Dexter axles with Nev-R-Adjust brakes and E-Z lube hubs, and a MORryde CRE-3000 rubberized suspension for hassle-free towing. Head inside to find handcrafted and glazed doors, drawers, and trim, residential vinyl flooring, blackout roller shades, plus many more at-home comforts. These models are also pre-wired for an inverter and you can add the optional solar packages to enjoy off-grid camping when the adventure calls for it!

Features

Standard Features (2023)

***PLEASE NOTE: Features and Options separated by type below

------------------------------------------------------

FIFTH WHEELS

Standard Exterior Equipment

StrongholdVBL™ aluminum framed and vacuum bond laminated gel-coated fiberglass exterior walls (including rear wall and slide room end walls)
Magnum Truss™ Roof System with one piece seamless roofing material with 20 year warranty
Climate Shield™ zero-degree tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- 35,000 BTU output furnace
- Double layer fiberglass batt insulation in ceiling and floor
- Double sided radiant barrier insulation (roof, floor and behind cap)
- PEX plumbing
HELIX Cooling System™ (industry exclusive):
- Jayco exclusive insulated dual duct design
- Directional and closeable A/C vents
- Larger return air vents with user accessible filters
JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
Painted fiberglass front cap with built-in specialty LED lighting
Custom automotive-grade vinyl exterior graphics package
LED exterior lighting package
Detachable shore power cord
Dual 30 lb. propane bottles with auto regulator
Pass-through storage with Slam-latch™ baggage doors
Digital TV antenna with Wi-Fi prep
Dual channel exterior marine-grade speaker
Fully enclosed, LED-lighted universal docking center:
- Selectable water connections
- Quick-connect outside shower, Black tank flush, winterization, and sanitization
- Independent satellite and whole coach cable hookups
- Water heater bypass
Battery disconnect
Under-mounted spare tire
LP quick connect
Roof ladder
Slide topper/awning prep
"Industry's BEST" outside kitchen (select models)

Standard Interior Equipment

Solid hardwood slide fascia
Handcrafted and glazed doors, drawers and trim
Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
5/8 in. tongue-and-groove joined plywood floor decking
Residential vinyl flooring (made in the USA)
Residential vinyl flooring in slideouts (no carpet)
LED dimmer switches (multiple locations)
Tri-fold hide-a-bed sofa with residential sleep surface (select models)
Theater seating (select models)
Stainless steel kitchen sink
Matte black kitchen faucet with pull-out sprayer
Dual USB charging ports (multiple locations)
Extra 120V power outlets in kitchen and slide rooms (where applicable)
Residential quilted bedspread and pillows
Gas-strutted under-bed storage
Inverter pre-wire (multiple locations)
C.P.A.P. prepped bedroom
Carbon monoxide and LP detector
Bathroom skylight
LED backlit medicine cabinet with custom framed mirror
Bathroom tile backsplash
Porcelain foot flush toilet

Customer Value Package (Mandatory)

MORryde® StepAbove™ entrance steps (main entrance) with blue LED light
15,000 BTU "Whisper Quiet" A/C
50-amp service with dual A/C ducts and second A/C prep
Electric patio awning with integrated dimmable LED lights
60,000 BTU tankless hot water system
Custom machined aluminum rims
Rear 2 in. towing receiver with 4 pin connector
Keyed-Alike™ lock system (single key for all doors/locks)
Rooftop and ground solar prep by Go Power!®
Security monitor prep-observation camera prep (rear, sides and entrance door)
Hidden hinges on cabinet doors
Upgraded friction hinge entrance door with XL grab handle
LED HDTV with fully digital HDMI® output
12V A/V system with Bluetooth® and HDMI®
Stainless steel range with glass cover
Stainless steel 30 in. over the range microwave
Residential queen (60 in. x 80 in.)mattress with under bed storage
Rain-proof bathroom power vent

4 Star Handling Package (Mandatory)

Goodyear® Endurance® Tires (made in the USA, load range 'E')
Dexter® Axles with Nev-R-Adjust® brakes and E-Z Lube® hubs
MORryde® CRE-3000™ rubberized suspension
Wet bolt fasteners, bronze bushings, and shock absorber prep

Luxury Package (Mandatory)

Electric auto-leveling
Rotational pin box
JAYCOMMAND® "Smart RV" System
10 cu. ft. 12V refrigerator
Blackout roller shades
Residential style glass shower doors
Tire Pressure Monitoring System (TPMS)

Options

Dry Camping Package (generator prep and extra LP capacity)
Extreme Weather Package with 110V heat pads (110V heat pads with 12V heat tape on main water line)
360° security kit with 7 in. monitor
Frameless dual-pane tinted safety-glass windows
Canadian Standards (CSA)
Free-standing rustic table with leaf and bench seat, 2 storage and 2 folding chairs
Free-standing rustic table with leaf and 2 storage and 2 folding chairs
Booth dinette (select models)
LED fireplace and electric heater (standard on select models)
Wall-hugger theater seating (standard on select models)
8 cu. ft gas/electric refrigerator
4 door gas/electric refrigerator (select models)
Extreme Weather Package with 110V heat pads (110V heat pads with 12V heat tape on main water line)
Outside griddle for JayPort System (select models)
Residential 72 in. x 80 in. king size mattress
Overlander 2 Solar Package: (2) 200W solar panels, 30-amp digital controller and 1800W inverter
Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C (if optioned), battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure

-------------------------------------------------------

TRAVEL TRAILERS

Standard Exterior Equipment

StrongholdVBL™ aluminum framed and vacuum bond laminated gel-coated fiberglass exterior walls (including rear wall and slide room end walls)
Magnum Truss™ Roof System with one piece seamless roofing material with 20 year warranty
Climate Shield™ zero-degree tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- 35,000 BTU output furnace
- Double layer fiberglass batt insulation in ceiling and floor
- Double sided radiant barrier insulation (roof, floor and behind cap)
- PEX plumbing
HELIX Cooling System™ (industry exclusive):
- Jayco exclusive insulated dual duct design
- Directional and closeable A/C vents
- Larger return air vents with user accessible filters
JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
Painted fiberglass front cap with built-in specialty LED lighting
Custom automotive-grade vinyl exterior graphics package
LED exterior lighting package
Detachable shore power cord
Dual 30 lb. propane bottles with auto regulator
Pass-through storage with Slam-latch™ baggage doors
Digital TV antenna with Wi-Fi prep
Dual channel exterior marine-grade speaker
Fully enclosed, LED-lighted universal docking center
- Selectable water connections
- Quick-connect outside shower
- Black tank flush, winterization, and sanitization
- Independent satellite and whole coach cable hookups
- Water heater bypass
Battery disconnect
Under-mounted spare tire (Goodyear® Endurance®- made in the USA)
LP quick-connect
Slide topper/awning prep
"Industry's BEST" outside kitchen (select models)

Standard Interior Equipment

Solid hardwood slide fascia
Handcrafted and glazed doors, drawers and trim
Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
5/8 in. tongue-and-groove joined plywood floor decking
Residential vinyl flooring (made in the USA)
Residential vinyl flooring in slide outs (no carpet)
LED dimmer switches (multiple locations)
Tri-fold hide-a-bed sofa with residential sleep surface (select models)
Theater seating (select models)
Stainless steel kitchen sink
Matte black kitchen faucet with pull-out sprayer
Dual USB charging ports (multiple locations)
Extra 120V power outlets in kitchen and slide rooms (where applicable)
Residential quilted bedspread and pillows
Gas-strutted under-bed storage
Inverter pre-wire (multiple locations)
C.P.A.P. prepped bedroom
Carbon monoxide and LP detector
Bathroom skylight
LED backlit medicine cabinet with custom framed mirror
Bathroom tile backsplash
Porcelain foot flush toilet

Customer Value Package (Mandatory)

MORryde® StepAbove™ entrance steps (main entrance) with blue LED light
15,000 BTU "Whisper Quiet" A/C
50-amp service with dual A/C ducts and second A/C prep
Electric patio awning with integrated dimmable LED lights
60,000 BTU tankless hot water system
Custom machined aluminum rims
Rear 2 in. accessories receiver
Keyed-Alike™ lock system (single key for all doors/locks)
Rooftop and ground solar prep by Go Power!®
Security monitor prep-observation camera prep (rear, sides and entrance door)
Hidden hinges on cabinet doors
Upgraded friction hinge entrance door with XL grab handle
4K LED Smart HDTV with fully digital HDMI output
12V A/V system with Bluetooth® and HDMI®
Stainless steel range with glass cover
Stainless steel 30 in. over the range microwave with exhaust fan
Rain-proof bathroom power vent

4 Star Handling Package (Mandatory)

Goodyear® Endurance® Tires (Made in the USA, load range 'E')
Dexter® Axles with Nev-R-Adjust® brakes and E-Z Lube® hubs
MORryde® CRE-3000™ rubberized suspension
Wet bolt fasteners, bronze bushings, and shock absorber prep

Luxury Package (Mandatory)

JAYCOMMAND "Smart RV" system (Pro tablet)
LED fireplace with electric space heater
10 cu. ft. 12V refrigerator
Blackout roller shades
Residential style glass shower doors
Tire pressure monitoring system (TPMS)
Washer/dryer prep (select models)

Options

Extreme Weather Package with 120V heat pads (110V heat pads with 12V heat tape on main water line)
Generator prep
2nd 15,000 BTU A/C
360° security kit with 7 in. monitor
Overlander 2 Solar Package: (2) 200W solar panels, 30-amp digital controller and 1800W inverter
Frameless dual-pane tinted safety-glass windows
Canadian Standards (CSA)
Electric auto-leveling system
8 cu. ft. gas/electric refrigerator
Free-standing rustic table with leaf, bench seat, 2 storage and 2 folding chairs
Free-standing rustic table with leaf, 2 storage and 2 folding chairs
Booth dinette (select models)
Bedroom LED fireplace, electric heater (320FBOK only)
Wall-hugger theater seating (standard on select models)
4 door gas/electric refrigerator (select models)
2nd A/C ducted in bedroom
Residential 72 in. x 80 in. king-size mattress
Residential 60 in. x 80 in. queen size mattress with under bed storage
Outside griddle for JayPort system (select models)
Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
Approximately a year ago, we purchased our Holiday Rambler RV at Bella Vista RV Centre. It wasn’t a high-pressure sales approach as we experienced at other dealers; these folks did an amazing job of showing us the value proposition on a wide selection of A Class RVs and when done, left it to us to think

Harry
Excellent Customer Service
Each time I have gone to Bella Vista for service or advice, the service department has been very helpful and exceptionally prompt. Their advice is always right on and has solved the issue at hand. In a 5 star rating they are an 10!!

Thank you Bella Vista.

Fred and Shirley

Fred
Excellent Customer Service
I purchased a older used trailer. Despite my low price point staff remained very attentive. Trailer even brought out of yard so my son could view after purchase.

Deborah

We are here to help, call us at
613-226-8228 or Contact Us

We are here to help!

613-226-8228
Contact Us
Make Offer

;

RV Liquidators is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @877-822-6238 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

New 2023 Jayco Eagle HT 30.5CKTS

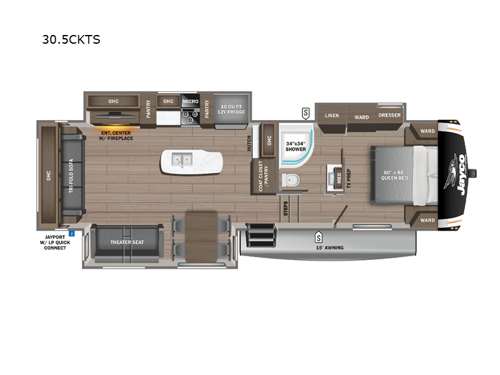

30.5CKTS Floorplan

Specifications

Description

Features

Specifications
