Jayco Melbourne Motor Home Class C - Diesel RVs For Sale

Previous
Next
1 of 13

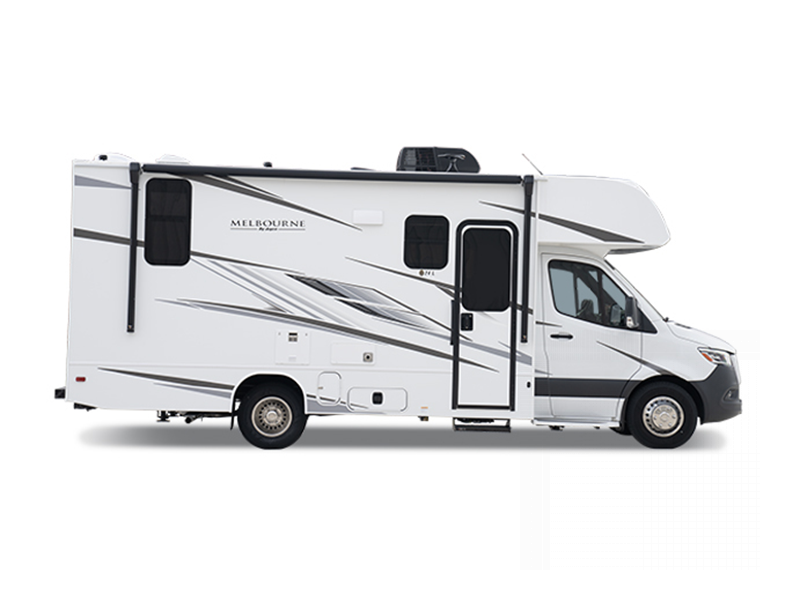

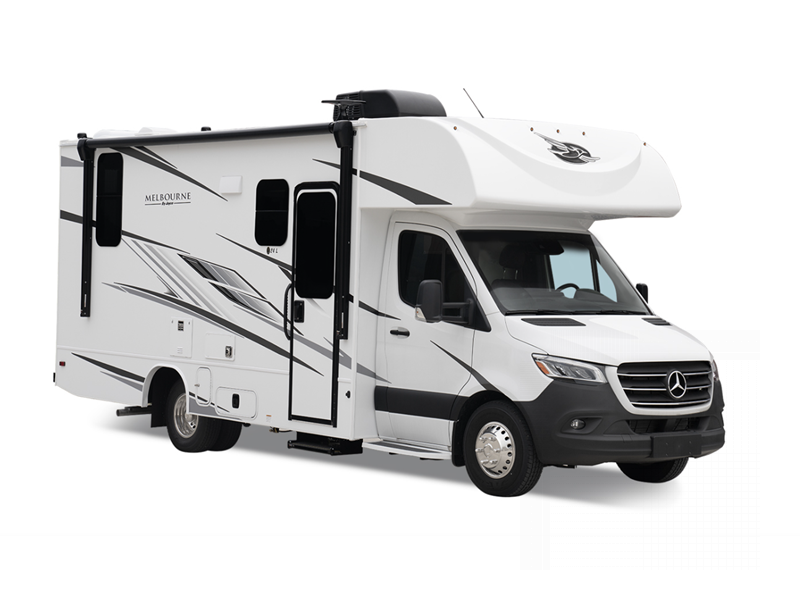

Sometimes the best things in life come in smaller packages, like the Melbourne Class C diesel motorhome by Jayco! You will love how easy it will be to maneuver through the town or country, and there are many residential features to make you feel right at home.



The durable chassis features an updated 2L V4 twin turbo diesel engine with 211 HP and 332 ft. lb. torque for more power, and the one-piece, seamless fiberglass front cap will add years of use to your unit. You will find the drive easier than ever with backup and side-view cameras, plus a 7" integrated Mercedes-Benz MBUX infotainment center. Each model also includes pleated blackout shades, LED-lit pressed countertops, hardwood cabinet doors and drawer fronts, and many more interior comforts!



The open road is yours in a Melbourne Class C diesel motorhome by Jayco. Choose your favorite floorplan today!

  • Melbourne 24L

    Melbourne 24L Floorplan Image

    Jayco Melbourne Class C diesel motorhome 24L highlights: 14' Power Awning with ... more about Melbourne 24L

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 25 ft 2 in
    Ext Width 8 ft
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Ashbrook

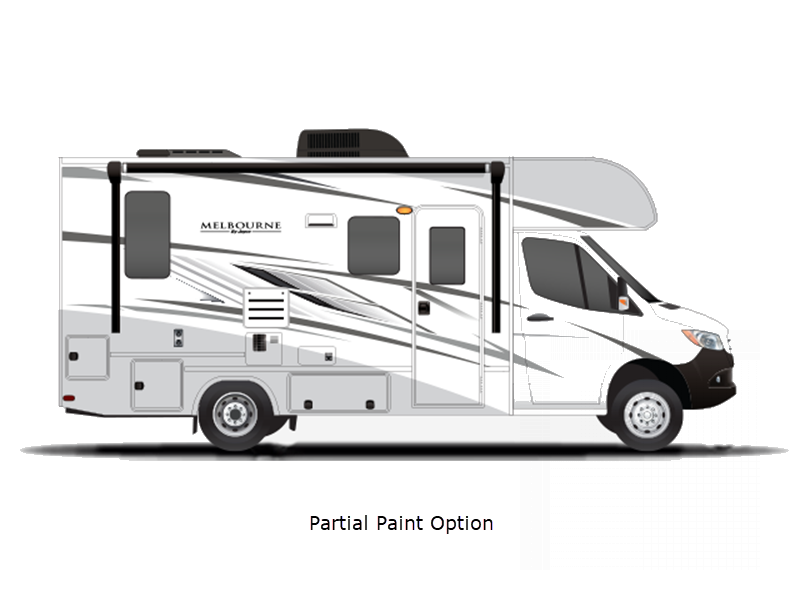

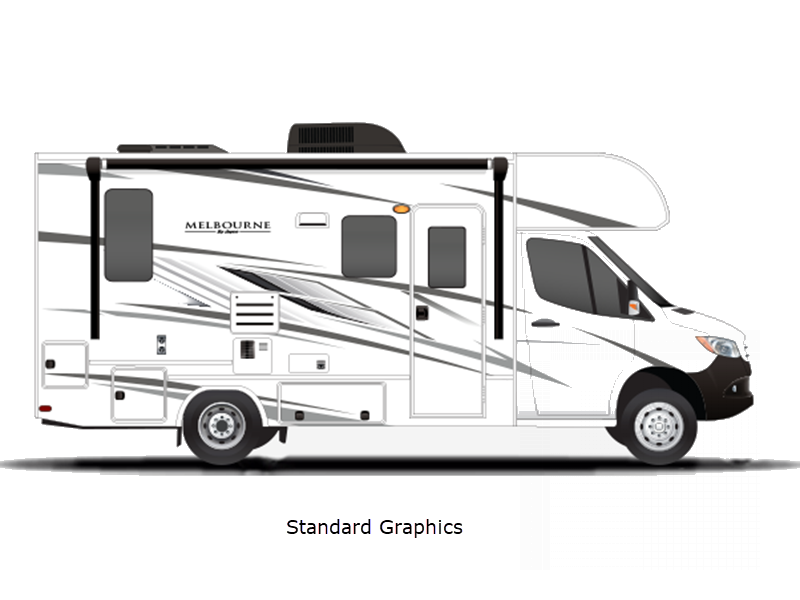

    Exterior Color Standard Graphics, Optional Partial Paint
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 31 gals
    Tire Size 215/85R16
    Furnace BTU 30000 btu
    Generator LP
    Fuel Type Diesel
    Engine 2L V4 Twin Turbo Diesel
    Chassis Mercedes-Benz 3500
    Horsepower 211 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds RV Queen
    Torque 332 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    LP Tank Capacity 41 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    Basement Storage 17 cu. ft.
    TV Info LR LED HD Smart TV
    Awning Info 14' Electric w/LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Melbourne 24R

    Melbourne 24R Floorplan Image

    Jayco Melbourne Class C diesel motorhome 24R highlights: Full-Wall Slide ... more about Melbourne 24R

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 25 ft 2 in
    Ext Width 8 ft
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Ashbrook
    Exterior Color Standard Graphics, Optional Partial Paint
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 31 gals
    Tire Size 215/85R16
    Furnace BTU 30000 btu
    Generator LP
    Fuel Type Diesel
    Engine 2L V4 Twin Turbo Diesel
    Chassis Mercedes-Benz 3500
    Horsepower 211 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds RV Queen Murphy Bed
    Torque 332 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    LP Tank Capacity 41 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    Basement Storage 22 cu. ft.
    TV Info LR LED HD Smart TV
    Awning Info 14' Electric w/LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Melbourne 24T

    Melbourne 24T Floorplan Image

    Jayco Melbourne Class C diesel motorhome 24T highlights: Rear Twin Beds Bedroom ... more about Melbourne 24T

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 25 ft 2 in
    Ext Width 8 ft
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Ashville
    Exterior Color Standard Graphics, Optional Partial Paint
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 31 gals
    Tire Size 215/85R16
    Furnace BTU 30000 btu
    Generator Onan 3,600-watt LP
    Fuel Type Diesel
    Engine 2L V4 Twin Turbo Diesel
    Chassis Mercedes-Benz 3500
    Horsepower 211 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Two Twin with King Conversion
    Torque 332 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 19" x 28" x 34"
    Number of Awnings 1
    LP Tank Capacity 41 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    Basement Storage 38 cu. ft.
    TV Info LR LED HD Smart TV
    Awning Info 14' Electric w/LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Melbourne Features:

Standard Features (2025)



Driving Equipment

  • Mercedes-Benz® 3500 chassis with 170 in. wheelbase
  • GVWR- 11,030 lb.
  • GCWR- 15,250 lb.
  • 2L V4 Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft. lb. torque
  • 9-speed automatic transmission
  • 220-amp alternator
  • E-rated highway tires- 215/85R16
  • Front and rear disc, 4-wheel anti-lock brakes
  • 5,000 lb. rear hitch receiver with dual connector
  • 12V chassis battery
  • 12.4 gal. fuel tank
  • 5.8 gal. DEF tank
  • Tilt steering wheel
  • Power windows and door locks
  • Cruise control
  • Crosswind assist
  • Hill start assist
  • Attention assist
  • Brake Assist Plus
  • Breakdown management
  • Emergency call system
  • Headlight assistant
  • Auxiliary start switch
  • Driver and passenger airbags
  • Privacy curtain for cab area

Exterior Equipment

  • Stronghold VBL™ Vacuum-Bond laminated roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • Tufflex PVC laminated roof
  • Fiberglass running boards
  • Fiberglass exterior walls with vinyl graphics
  • Electric stabilizer jacks
  • Slideout awning(s)
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step with integrated house battery compartment
  • Third brake light
  • 4 in. bumper tube with sewer hose storage
  • Prep for satellite dish
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 3,600W LP generator (4,000W on select models)
  • Solar prep
  • 12V house battery
  • Transfer switch with reverse polarity protection
  • 30-amp electrical service
  • 12.2 gal. propane tank (41 lb.)
  • LP quick-connect hookup
  • Exterior utility center
  • Winterization drain system
  • Black tank flush
  • Outside shower
  • 12V demand water pump
  • Water filtration system

Interior Equipment

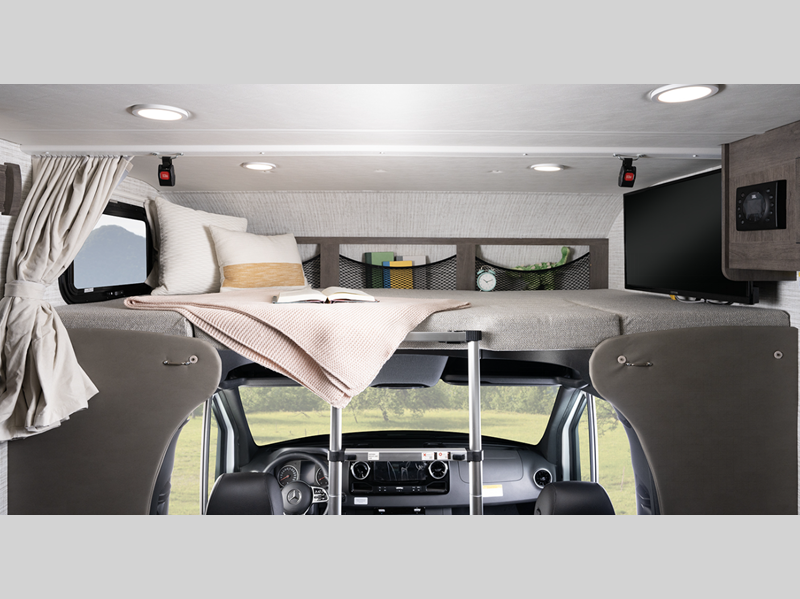

  • Overhead bunk with 750 lb. capacity
  • 83 in. interior ceiling height with padded vinyl ceiling
  • High-intensity, LED ceiling lights
  • LED-lit slideout fascia
  • Hardwood cabinet doors and drawer fronts
  • Ball-bearing drawer guides
  • Pleated blackout shades
  • 13,500 BTU A/C
  • 30,000 BTU auto-ignition ducted furnace
  • 6 gal. gas/electric water heater and water heater bypass
  • Powered roof vent in living area with wall switch
  • Jayco-exclusive, easy-operation legless dinette table (24R)

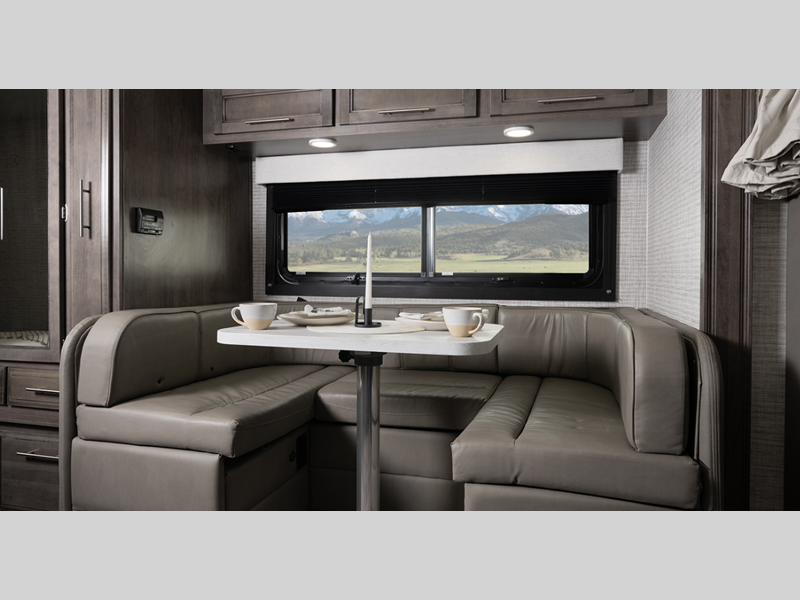

  • U-shaped dinette with stow away pedestal legs (24L)
  • 12V USB charging station in dinette area
  • 2-point lap safety belts in all designated seating locations
  • Car seat tethers (select floorplans)
  • LED HD Smart TV

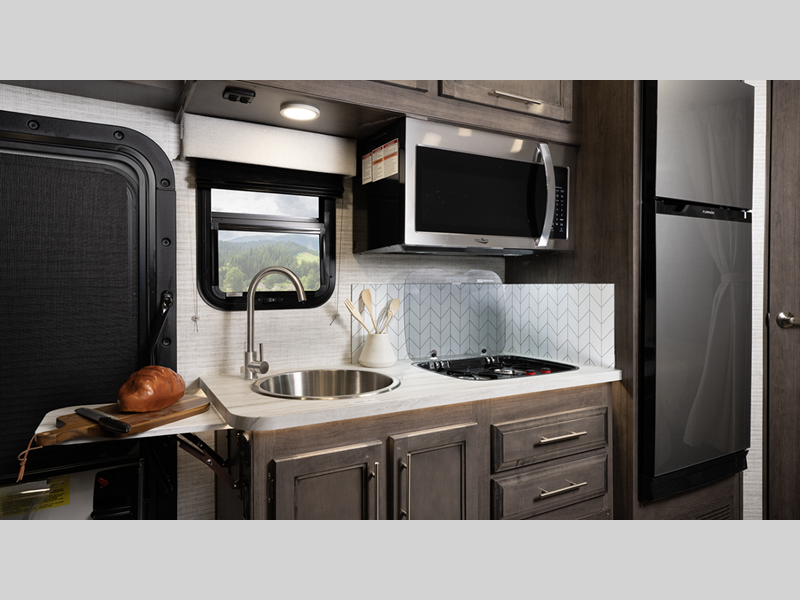

  • 10 cu. ft. 12V refrigerator
  • 2-burner, drop-in cooktop with flush cover
  • Convection microwave
  • Stainless steel sink with wooden cover/cutting board
  • LED-lit pressed countertops
  • Flip-up countertop extension (select models)
  • Decorative kitchen backsplash

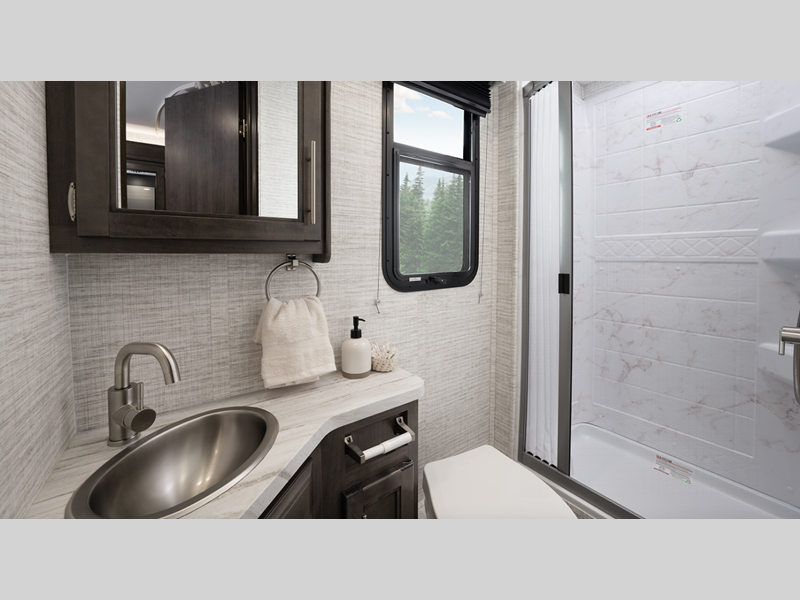

  • Shower with decorative surround and skylight
  • Stainless steel bathroom sink
  • Toilet with foot flush
  • Powered roof vent in bathroom with wall switch

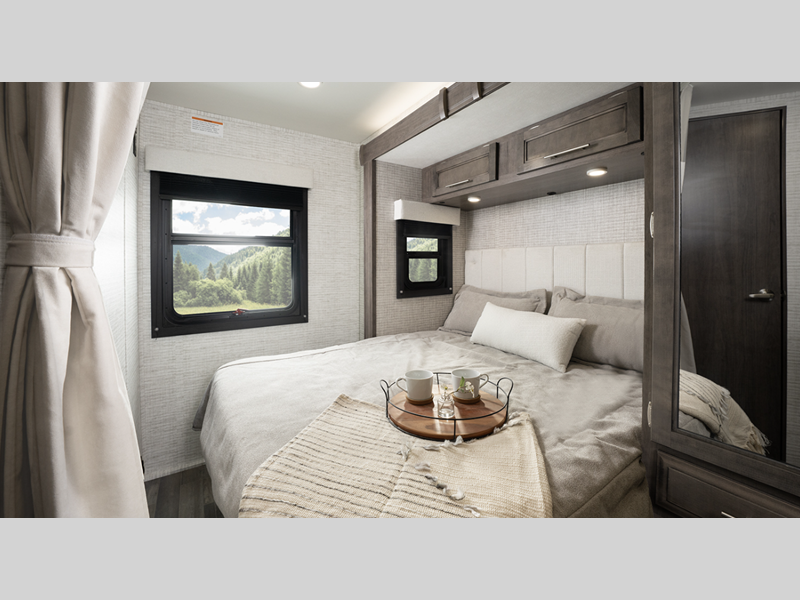

  • Queen-size bed with bedspread (24L)
  • Queen-size power Murphy bed (24R)
  • USB port(s) in bedroom
  • Bedroom TV prep
  • Large wardrobes
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package (Mandatory)

  • One-piece, seamless, fiberglass front cap
  • Frameless windows
  • Heated holding tanks (12V pads)
  • Heated, remote-controlled, side view mirrors
  • Electric patio awning with LED lights
  • Backup and side-view camera
  • Keyless cab entry

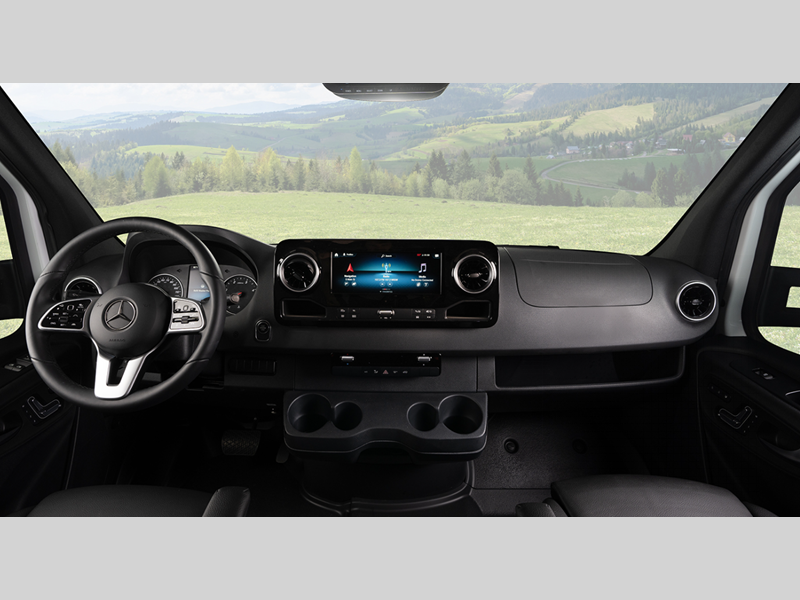

  • 7 in. integrated Mercedes-Benz® MBUX infotainment center with GPS, Apple® CarPlay™ and Android Auto™
  • Swivel driver and passenger seats with boosters

Options

  • Premium Mercedes chassis - includes active brake assist, chrome grill package, adaptive cruise control, heated captain's seats, smartphone tray with wireless charging, upgraded lighting package, rain-sensing wiper system, leather steering wheel, lane-keeping assist and traffic sign assist
  • Front entertainment center with 32 in. LED HD Smart TV
  • Folding windshield sun shade
  • 4-point hydraulic leveling jacks
  • Theater seating ILO dinette
  • 200W solar panel with dual controller and second house battery

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
